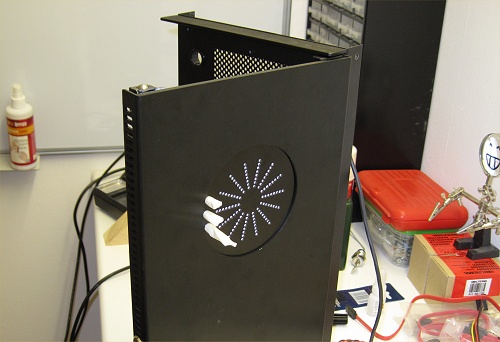

Next up was to extend the buttons so they can be reached from the front. The masking tape is used as a limiter so the new buttons don't get pushed all the way to the bottom while the JB Weld is curing. And yes, the bezel is upside down during this part of the work.

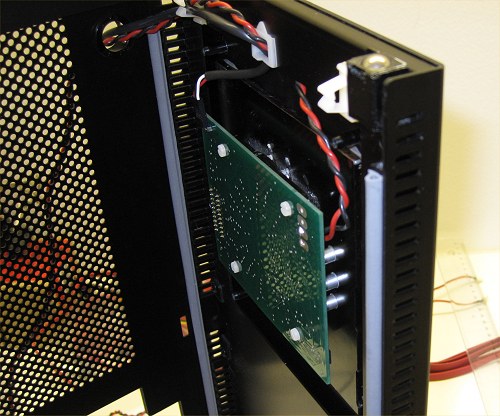

A different view from the inside where the aluminium buttons can be seen poking through the holes.

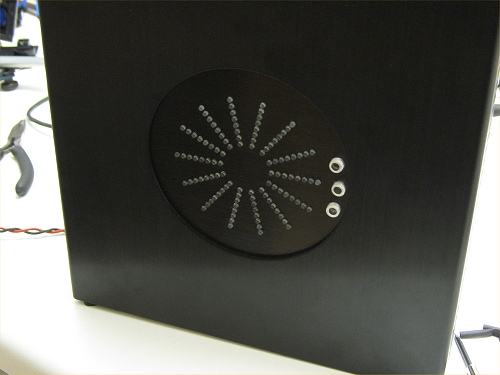

The epoxy has cured and the new buttons are visible for the first time.

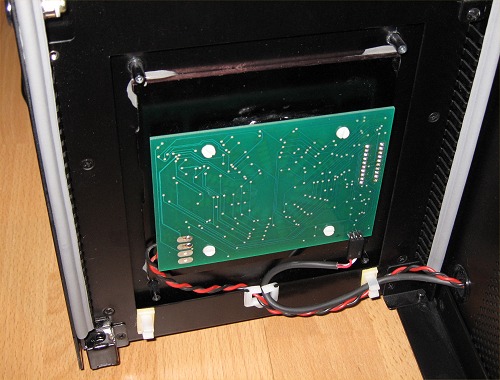

The bezel is now back on the case and the wiring is done, well the new wires use the old wiremanagement from the original blue ring.

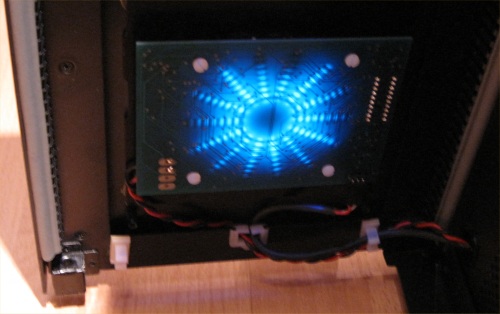

I bet you didn't see the blue light in the previous picture, well nor did, I so here is another shot without the flash.

Project Ione is done.

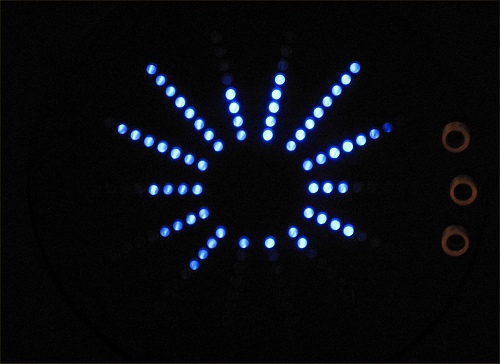

With the flash off this is what you will see when music is playing.


A picture might say a thousand words but I prefer videos when things are in motion so here are three small video clips of the MDVA in action (they are about 10MB each using the DivX codec):

Random radio stream
Sash - Stay
Sash - Adelante

Until next time, have fun.
